Why wheel fitment matters more on a BMW than almost any other car

BMW's suspension geometry is engineered to tighter tolerances than most manufacturers. The relationship between wheel offset, tyre width, and camber angle is not a suggestion — it's a system. When every component is in the right position, a BMW handles with a precision that feels almost telepathic. When it isn't, you're not just looking at a visual problem. You're degrading the one thing that makes a BMW worth owning: the way it drives.

This is why BMW wheel fitment is a more technical decision than fitting wheels to a Commodore or a Hilux. The offset has to be right. The centre bore has to be hub-centric. The width has to be matched to a tyre that the car can actually use. Get it right and you'll notice the difference in the first corner. Get it wrong and you'll spend money to undo it.

The E and F chassis: 5×120 and what it means for your build

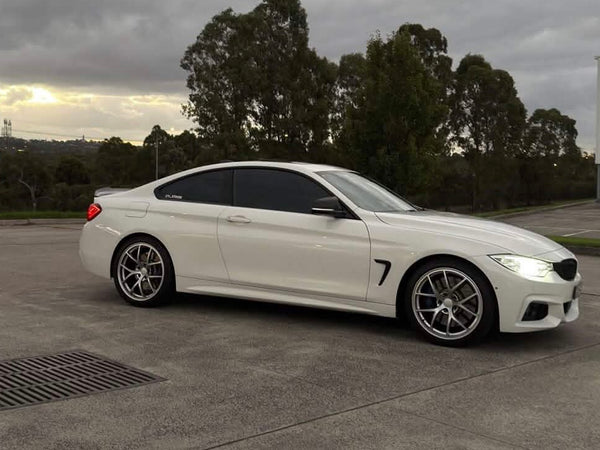

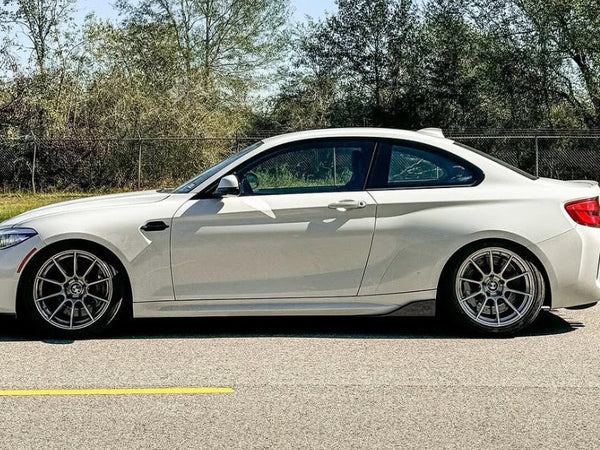

BMW's E-chassis and F-chassis models — covering the E90/E92/E93 M3, F80 M3, F82/F83 M4, F87 M2, E60 M5, F10 M5, E63/E64 M6, F12/F13 M6, F30/F31 3 Series, F32 4 Series, and F15 X5 — all use a 5×120mm bolt pattern with a 72.6mm centre bore. This has been the BMW standard for two decades of M cars and is the reason a set of wheels from an F80 M3 will physically bolt onto an E90 M3. The critical caveat is that while they'll bolt on, the offset and width requirements are different between chassis and getting those numbers wrong is where builds go wrong.

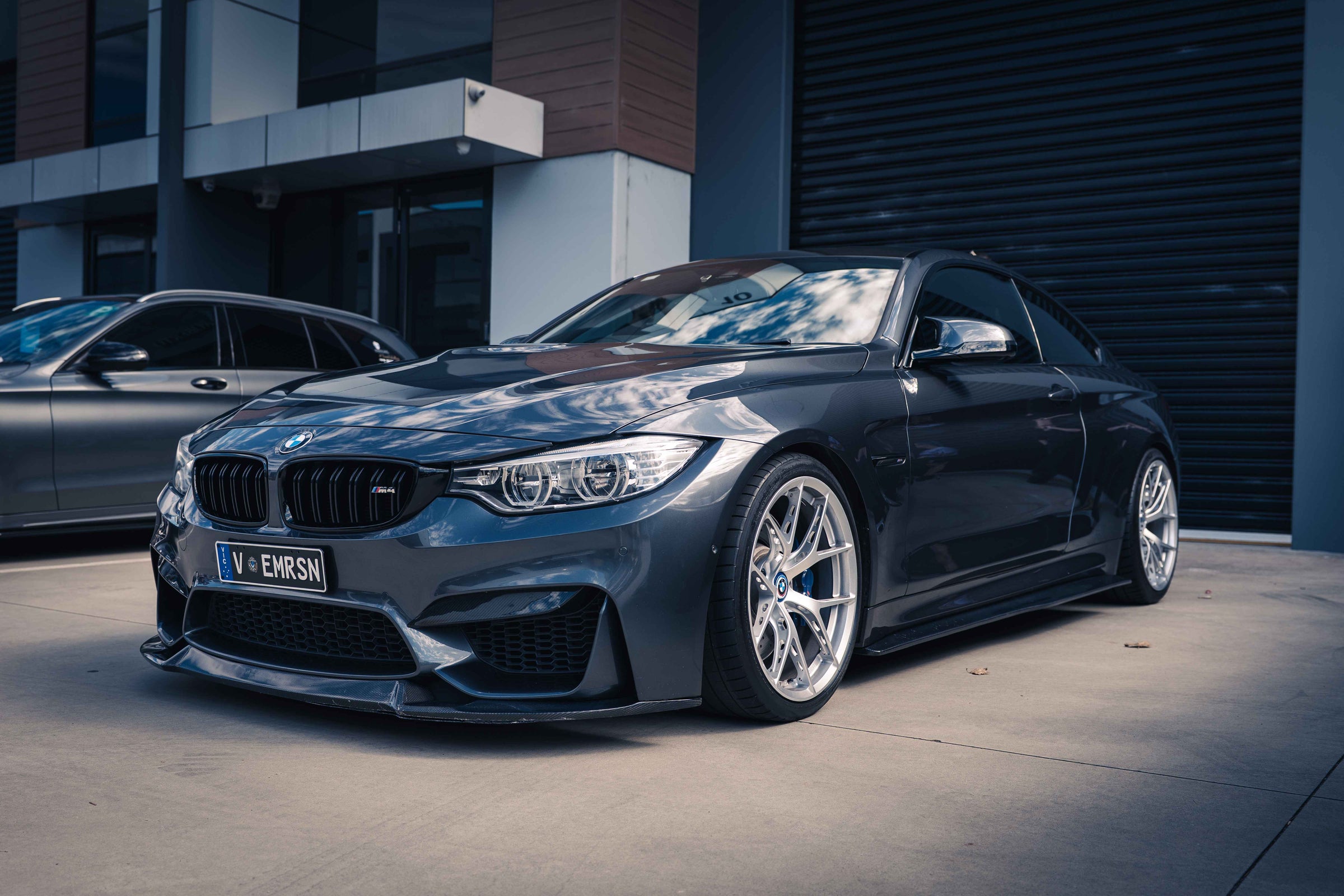

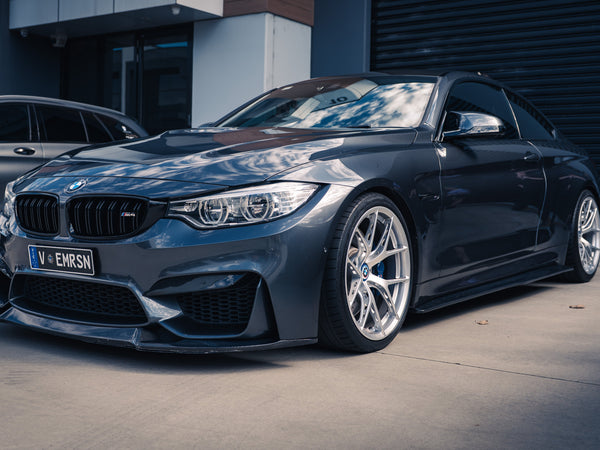

The F80 M3 and F82 M4 are worth calling out specifically. BMW engineered an asymmetric offset setup for these cars — the front wheel runs a significantly lower offset than the rear. This was a deliberate suspension geometry decision. When owners run a square set (same offset front and rear) on these cars, one end is compromised. The common fix is a small front spacer that brings the front offset in line with the rear — effective, but something you need to know before you order.

The G chassis shift: 5×112 and why it catches people out

BMW's transition to the G-chassis brought a change that still catches people out: the bolt pattern switched from 5×120mm to 5×112mm, with the centre bore dropping to 66.6mm. This affects the G80/G81 M3, G82/G83 M4, G87 M2, and all G-chassis 3 Series, 4 Series, 5 Series, 7 Series, X3, X5, and X6 variants.

The complication is BMW's use of F-chassis codes for some M models built on G platforms. The F90 M5, F97 X3 M, F98 X4 M, F95 X5 M, and F96 X6 M all carry F-chassis codes but are built on G-chassis underpinnings. All of these use 5×112 and 66.6mm centre bore — not the 5×120/72.6mm you'd expect from the F designation. Every spec on this page accounts for this. If you're sourcing wheels elsewhere, verify before you buy.

Flow-formed vs forged: which is right for your BMW

Both construction methods outperform cast alloy wheels, but they serve different purposes and price points.

Flow-formed wheels start as a cast blank that is then spun under high pressure rollers, which compresses and aligns the metal grain in the barrel. The result is a wheel that is stronger than a comparable cast wheel at lower weight, without the cost of a fully forged piece. For street use, track days, and builds where value-to-performance matters, flow-formed is the right call. The majority of WheelWork Customs' in-stock range is flow-formed — these are not budget cast wheels. They are engineered performance wheels available at a price point that makes sense.

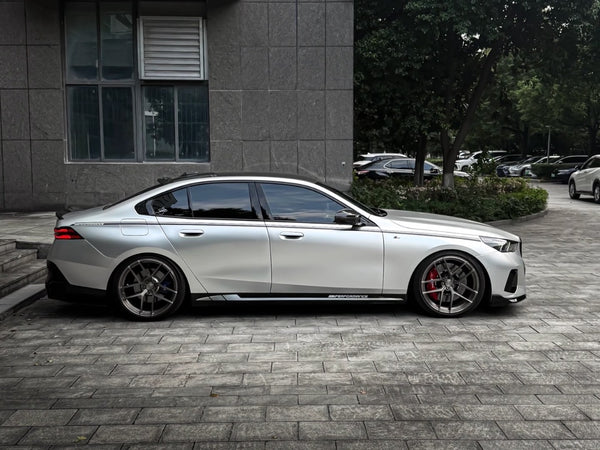

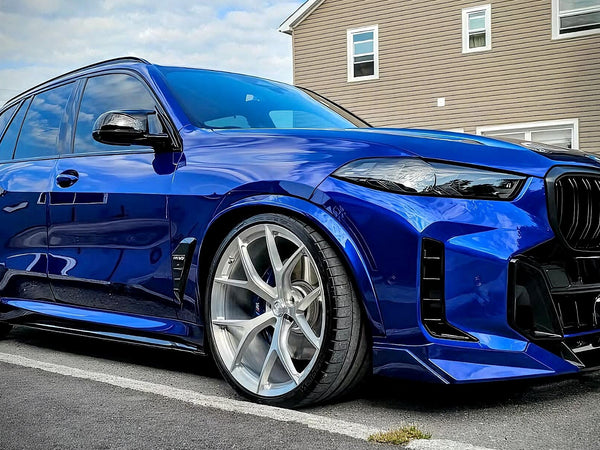

Forged wheels are machined from a single billet of aluminium that has been pressed under thousands of tonnes of force. The resulting grain structure is denser and more aligned than any cast or flow-formed process can achieve. Forged wheels are lighter, stronger, and more expensive. For dedicated track use, widebody builds, or builds where maximum weight reduction and structural integrity are the priority, forged is the answer. WheelWork Customs' custom forged program lets you specify your exact offset, width, and finish — built to your chassis, not off a shelf.

BMW aftermarket wheels Australia — buying guide

Australian BMW owners face the same challenge as every other market: the internet is full of generic fitment advice that doesn't account for chassis-specific requirements. The most common mistakes we see from customers who've ordered elsewhere before finding us are wrong centre bore, incorrect offset for their specific suspension setup, and wheels that technically bolt on but rub under load.

WheelWork Customs ships BMW aftermarket wheels to every Australian state and territory. Sydney, Melbourne, Brisbane, Perth, Adelaide, Gold Coast, and Canberra are our strongest markets, with customers across NSW, VIC, QLD, WA, SA, TAS, ACT, and NT all ordering through our fitment-verified program. Every wheel we supply is matched to your chassis before it ships.
