Zeekr 7X Forged Wheel Fitment Guide
Stop Guessing. Zeekr 7X Fitment Done Right.
The Zeekr 7X runs a 5x108 bolt pattern with a tight 63.4 mm centre bore — not the 5x114.3 most 'universal' wheels are drilled for. Every set we forge is machined to your exact PCD, centre bore and offset, and load-rated for the weight of a dual-motor EV.
Industry-Leading Warranty
8-Year Structural. Built Different.
8 years structural and 3 years cosmetic on every forged set. No other custom wheel builder in Australia backs their product like this.
Zero Risk. Zero Hassle.
Free Shipping. Fitment Guaranteed.
Every order ships free across Australia. If the specs don't match your 7X, we make it right — no questions asked.
Certified & Affordable
Certified Forged. Cheaper Than Rivals.
Every WWC forged wheel is structurally certified and independently verified — priced below the market, backed by the strongest warranty in Australia.
Verified Factory Fitment
Zeekr 7X — Locked-In Specs
Applies to the Zeekr 7X (2024–2026, including the Facelift) — RWD and dual-motor 4WD. Every set we forge is machined to these numbers.
Bolt Pattern (PCD)
5×1085 stud, 108 mm
Centre Bore
63.4 mmhub-centric
Lug Thread
M14×1.5lug bolts
Offset (ET) Range
ET38–45.5OE ET43.5
Factory & Forged-Build Sizes
| Setup | Rim | Tyre | Offset |
|---|---|---|---|
| OE Standard (19") | 8.5J×19 | 255/50 R19 | ET43.5 |
| Factory Option (20") | 9J×20 | 265/45 R20 | ET43.5 |
| Factory Option (21") | 9J×21 | 265/40 R21 | ET43.5 |
| Custom Forged | Your spec | Square or staggered | Built to your ET (from ET38) |
Running another Zeekr — the X, 001, 009 or 7GT? Message us your model and we'll confirm your exact PCD, bore and offset before you order.
Perfect Fitment = Better Drive
Forged to the 7X's exact 5×108 PCD, 63.4 mm bore and offset — no spacers, no guesswork, proper hub-centric seating and clean brake clearance.
Lighter = Sharper & More Range
Forged wheels strip unsprung weight off a heavy EV — sharper turn-in, better ride, and less rolling mass to haul.
A Stance That Actually Fits
Dial in a flush, aggressive look that suits the 7X's proportions — wider offsets down to ET38 without rubbing guards or killing steering feel.
Shop the Range
Forged Wheels for the Zeekr 7X

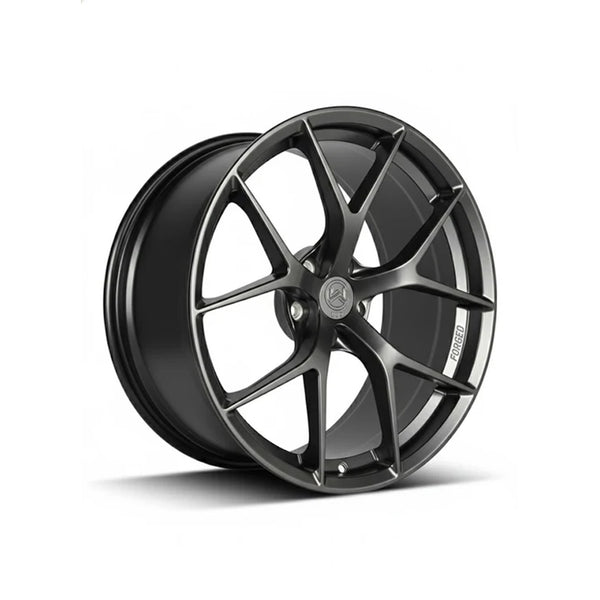

Custom Forged WWC RID | 5-Split-Spoke Performance Wheel$725.00

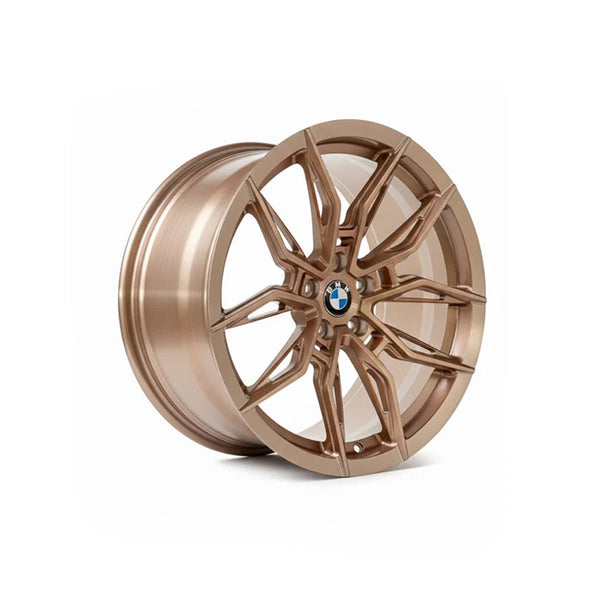

Custom Forged WWC 1000M Motorsport Style – Lightweight Performance Wheel$775.00

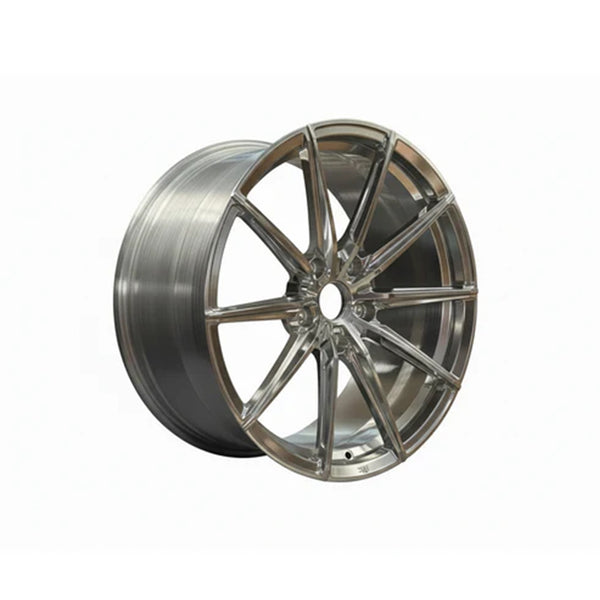

Custom Forged WWC CF3 | 3-Spoke Performance Wheel$725.00

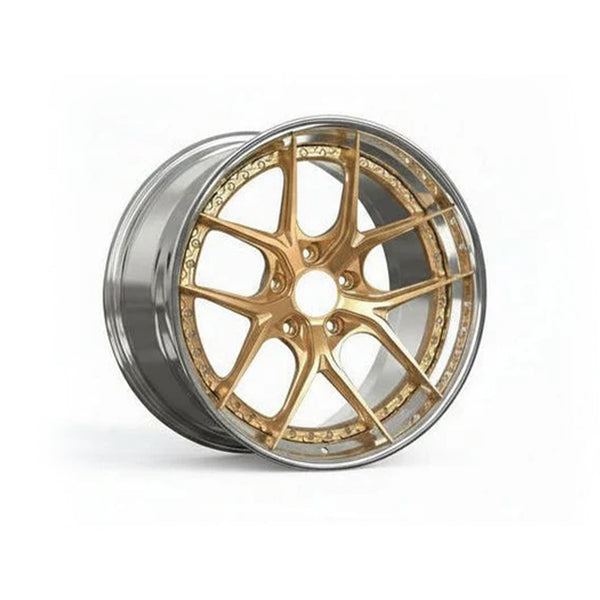

Custom Forged WWC RoyalMesh 2-Piece Wheel$1,025.00

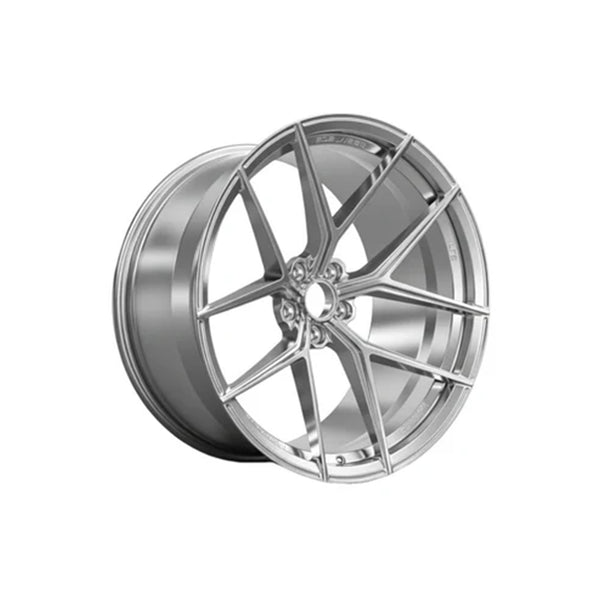

Custom Forged WWC LT Racing performance wheels$725.00

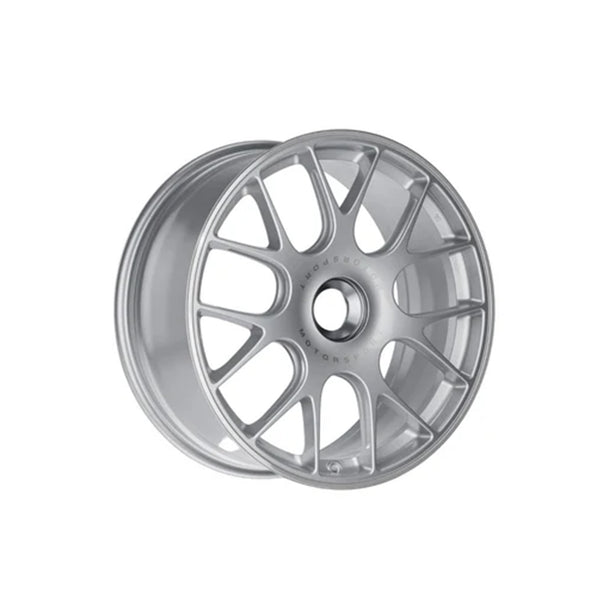

Custom Forged WWC CH Evo performance wheels$725.00
Why Zeekr 7X wheel fitment isn't like fitting any other SUV
The Zeekr 7X is built on Geely's SEA electric architecture, and it shows in the fitment. Where most performance and aftermarket wheels are drilled 5×114.3, the 7X uses a 5×108 mm bolt pattern — the same pattern family you'll find under Volvo and several European platforms. A 5×114.3 wheel will not bolt to a 7X. Getting the pattern right is step one, and it's where most "it looked close enough" orders go wrong.
The 63.4 mm centre bore is the detail nobody checks
The 7X hub is 63.4 mm. That's a small, specific bore. Plenty of 5×108 wheels are machined to a larger bore so one design can cover several cars, then rely on plastic hub-centric rings to take up the gap. On a 2.4-tonne-plus EV putting down instant torque, a wheel that hangs on the bolts instead of seating on the hub is how you get steering-wheel vibration and premature stud wear. Every WheelWork Customs forged wheel for the 7X is machined hub-centric to 63.4 mm — it sits on the hub, the way it should.
EV weight means load rating is not optional
The 7X is heavy and fast — the dual-motor version makes well over 600 hp and the facelift pushes higher again. A wheel for a car like this has to carry the mass and absorb the instant torque of an electric drivetrain without complaint. Cheap cast replicas are frequently not load-rated for EV kerb weights. Our forged wheels are machined from a single billet, structurally certified and independently verified to the load your 7X actually needs.
Offset: factory ET43.5, forged from ET38
Factory offset is ET43.5, and because every set is forged to order, we can bring the offset in to a more aggressive ET38 when a flush or wide-body stance calls for it — while keeping the tyre inside the guard and the steering feel intact. Factory sizes run 8.5J×19 up to 9J×21; a forged build lets you specify width, offset and lip depth to exactly the look and clearance you want.
Why forged is the right call for a Zeekr 7X
Forged wheels are machined from a single billet of aluminium pressed under thousands of tonnes of force. The grain structure is denser and more aligned than any cast or flow-formed process can achieve, which means a wheel that is lighter and stronger — exactly what a heavy performance EV like the 7X benefits from. Less weight on each corner sharpens the ride and steering, and the strength headroom handles the mass and torque of the drivetrain. Every WheelWork Customs forged build for the 7X is made to your exact width, offset and finish — built to your car, not off a shelf.
Zeekr 7X forged wheels — Australia-wide
WheelWork Customs ships Zeekr 7X forged wheels to every Australian state and territory — Sydney, Melbourne, Brisbane, Perth, Adelaide, Gold Coast and Canberra, and across NSW, VIC, QLD, WA, SA, TAS, ACT and NT. As Zeekr rolls out across Australia, we're already forging fitment-verified sets for 7X owners. Every wheel is matched to your chassis before it ships, and if it doesn't fit, we make it right.
Common Questions
Zeekr 7X Forged Wheel FAQ
What is the bolt pattern on a Zeekr 7X?
The Zeekr 7X uses a 5×108 mm bolt pattern (5 studs, 108 mm circle) with a 63.4 mm centre bore and M14×1.5 lug bolts, across 2024–2026 models including the facelift.
Will 5×114.3 wheels fit a Zeekr 7X?
No. The 7X is 5×108, not 5×114.3, so wheels drilled 5×114.3 will not bolt on. Always match the exact 5×108 pattern — every WWC forged set for the 7X is built to it.
Do I need hub-centric rings for my Zeekr 7X?
Not with our wheels. We forge each 7X wheel hub-centric to the factory 63.4 mm bore, so the wheel seats on the hub — no rings, no vibration.
What wheel and tyre sizes fit the Zeekr 7X?
Factory sizes are 8.5J×19 (255/50 R19), 9J×20 (265/45 R20) and 9J×21 (265/40 R21) at ET43.5. Because every set is forged to order, we can build offsets from ET38 up to around ET45.5, in square or staggered widths — we confirm guard clearance first.
Are your forged wheels rated for an EV's weight?
Yes. The 7X is a heavy, high-torque EV, and every WWC forged wheel is machined from a single billet, structurally certified and load-rated for that weight — unlike many cheap cast replicas.
How long does a forged set take to deliver?
Pre-made forged designs take about 6–8 weeks. Custom forged builds run 4–5 weeks for 1-piece and 6–8 weeks for 2-piece.
Do you ship Zeekr 7X wheels across Australia?
Yes — free shipping to every state and territory, including WA, and fitment is guaranteed. If the specs don't match your car, we make it right.
Quick Reference
| Zeekr 7X (2024–2026) | Spec |
|---|---|
| Bolt pattern (PCD) | 5×108 mm |
| Centre bore | 63.4 mm |
| Lug thread | M14×1.5 (lug bolts) |
| OE wheel / tyre | 8.5J×19 ET43.5 · 255/50 R19 |
| Factory options | 9J×20 · 9J×21 (ET43.5) |
| Forged offset range | ET38–45.5 |
Always confirm against your vehicle's door-jamb sticker before ordering. Specs verified for AU/EU/CN-market 7X, 2024–2026.
Forge a set for your 7X
Send us your Zeekr 7X and the look you're after — we'll come back with fitment-matched forged options and a quote.
Get a Forged Quote
